220 µF
Electrolytic capacitor 220 µF x 400 V
Pinout:
Default
Style:
GOST
Variant:
Variant 1
SNAP3025
Manufacturer:
Hitachi AIC
Part number:
HP32G221MRZS2

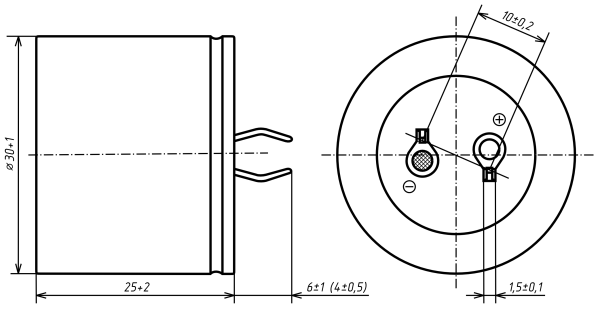

Snap-in Ø30 × H25 mm, P10.0
package diagram
SNAP2540
Manufacturer:
Hitachi AIC
Part number:
HU42G221MRY

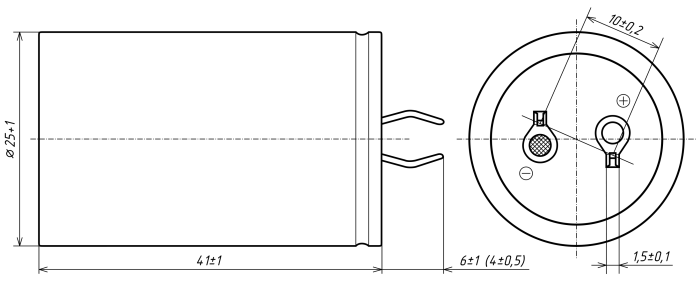

Snap-in Ø25 × H40 mm, P10.0
package diagram
SNAP2245
Manufacturer:
JAMICON
Part number:
LPW221M2GN45

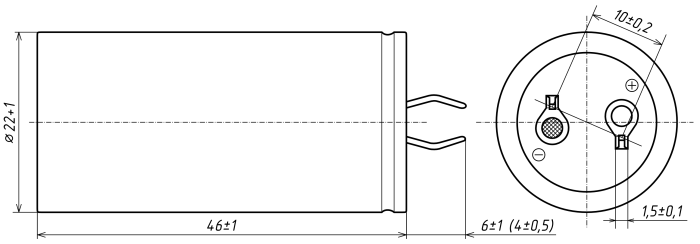

Snap-in Ø22 × H45 mm, P10.0
package diagram
SNAP2250
Manufacturer:
JAMICON
Part number:
HSW221M2GN50
Manufacturer:
YAGEO
Part number:
LH400M0220BPF-2250

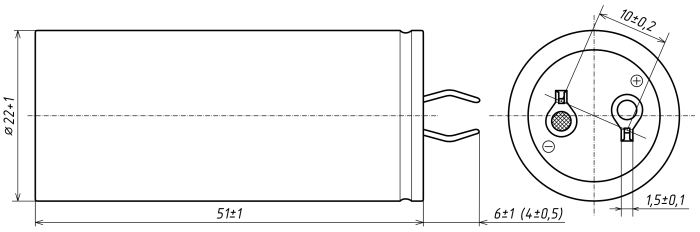

Snap-in Ø22 × H50 mm, P10.0
package diagram
