100 µF
Electrolytic capacitor 100 µF x 400 V
Pinout:
Default
Style:
GOST
Variant:
Variant 1
SNAP2230
Manufacturer:
SAMWHA
Part number:
HK2G107M22030HA
Manufacturer:
Hitachi AIC
Part number:
HU32G101MRX
Manufacturer:
YAGEO
Part number:
LG400M0100BPF-2230
Snap-in Ø22 × H30 mm, P10.0
package diagram
RC1835
Manufacturer:
JAMICON
Part number:
TKR101M2GL35
Radial can Ø18 × H35 mm, P7.5
package diagram
RC1836
Manufacturer:
YAGEO
Part number:
SH400M0100B7F-1836
Radial can Ø18 × H36 mm, P7.5
package diagram
SNAP2025
Manufacturer:
Hitachi AIC
Part number:
HP32G101MRWS2

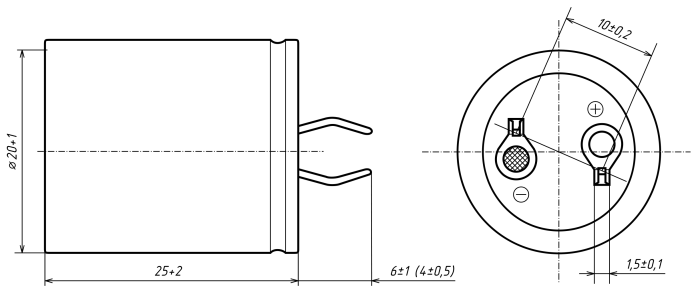

Snap-in Ø20 × H25 mm, P10.0
package diagram
SNAP2530
Manufacturer:
YAGEO
Part number:
LG400M0100BPF-2530

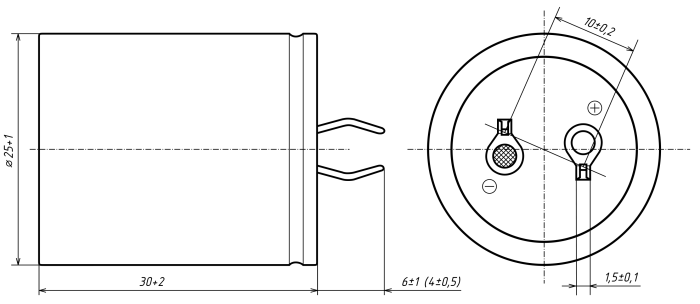

Snap-in Ø25 × H30 mm, P10.0
package diagram
