Pin header 20x1, 1.27mm
Single row 20-pin pin header, 1.27 mm pitch
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PHC20x1
Manufacturer:
Amphenol
Part number:
G8020201106YEU
Pin header connector 20x1

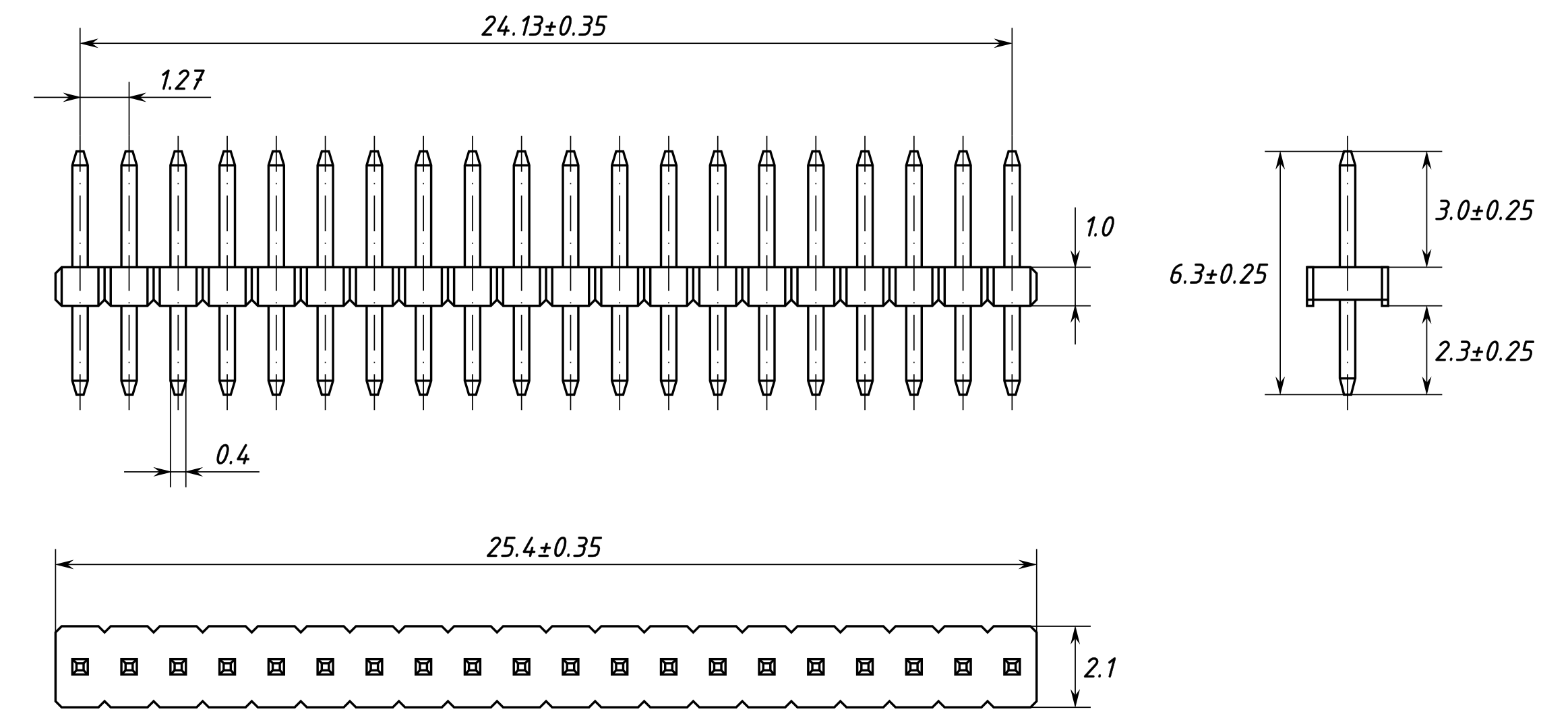

package diagram
PHCRA20x1
Manufacturer:
Harwin
Part number:
M50-3932042

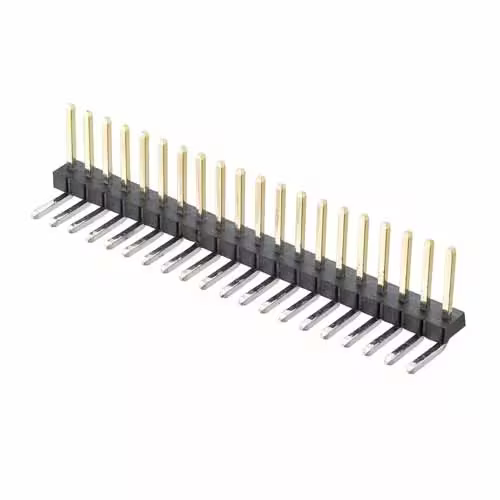

Right angle pin header 20x1

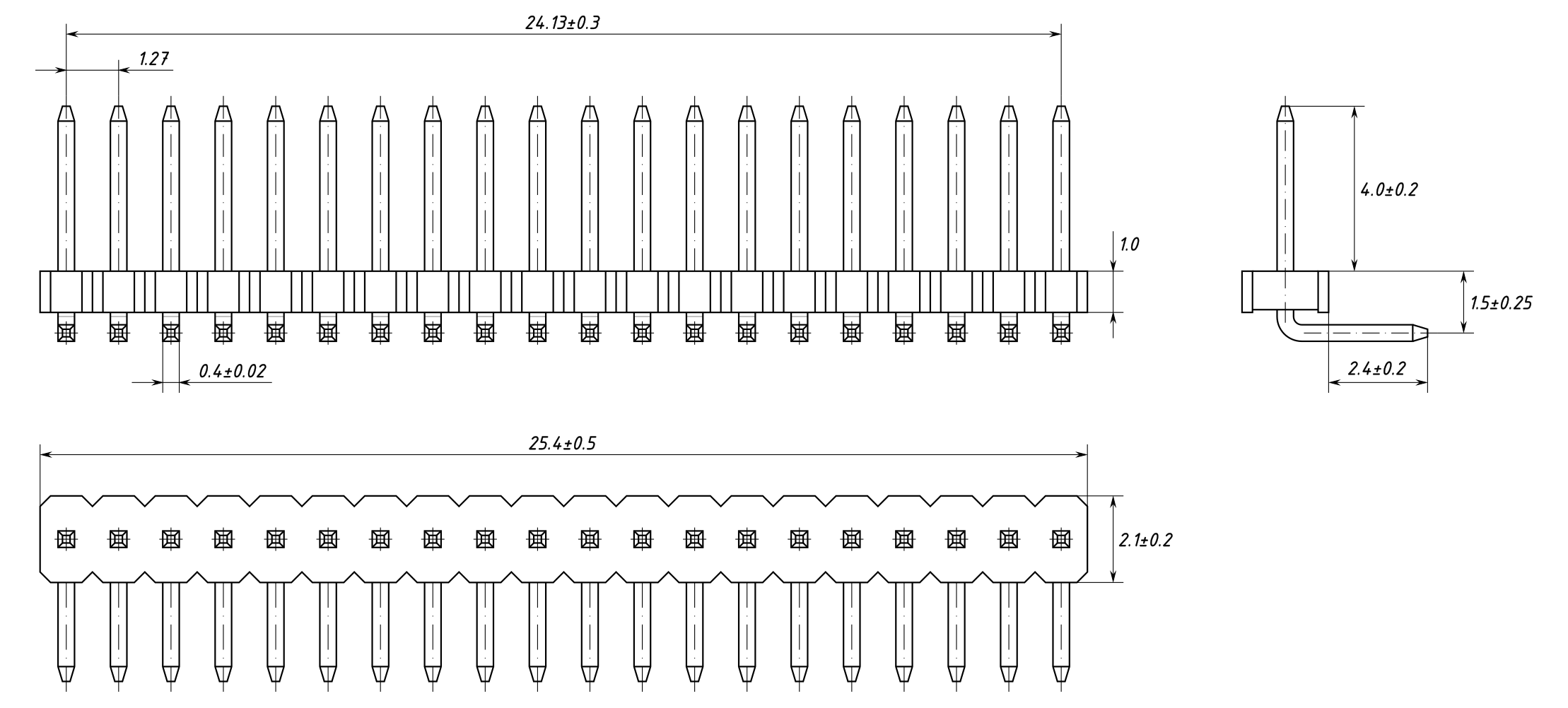

package diagram
