M24256E-F
256-Kbit serial I²C bus EEPROM with configurable and preprogrammed device address

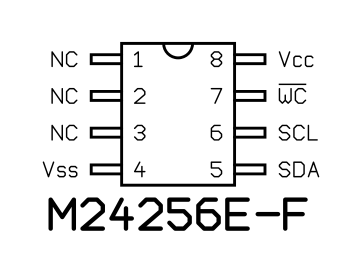

Pinout:
Default
Style:
GOST
Variant:
Variant 1
SOIC-8
(JEDEC MS-012, Variation AA)
Pinout
Manufacturer:
STMicroelectronics
Part number:
M24256E-FMN6TP
SOIC-8 (JEDEC MS-012, Variation AA)
package diagram
TSSOP-8
(JEDEC MO-153, Variation AA)
Manufacturer:
STMicroelectronics
Part number:
M24256E-FDW6TP
TSSOP-8 (JEDEC MO-153, Variation AA)
package diagram
UDFN-8
(JEDEC MO-229, Variation U2030D)
Manufacturer:
STMicroelectronics
Part number:
M24256E-FMC6TG
UDFN-8 (JEDEC MO-229, Variation U2030D)
package diagram
