8284
Clock generator and driver for 8086, 8088 and 8089 processors

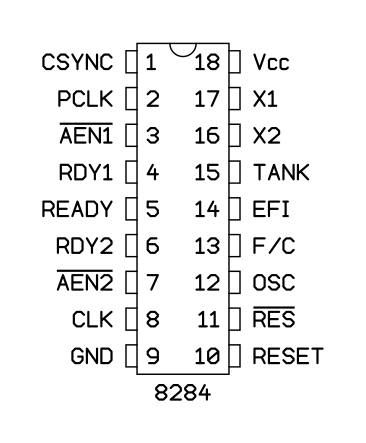

Pinout:
Default
Style:

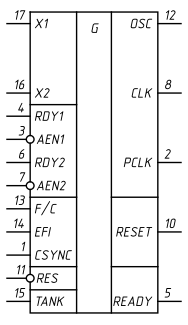

GOST
Variant:
Variant 1
PDIP-18
(JEDEC MS-001, Variation AC)

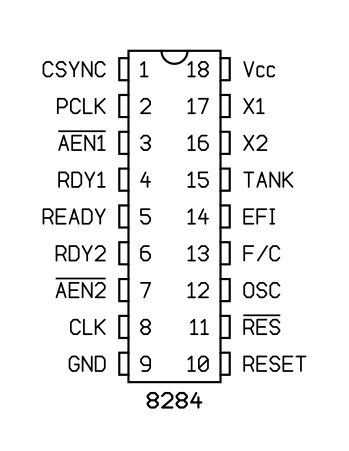

Pinout
Manufacturer:
Intel
Part number:
P8284
PDIP-18 (JEDEC MS-001, Variation AC)
package diagram
