6504
8 bit microprocessor

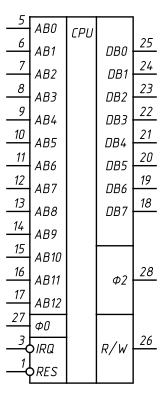

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-28
(JEDEC MS-011, Variation AB)

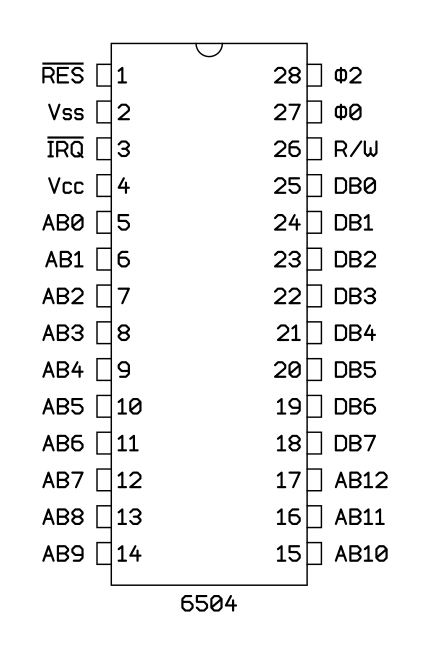

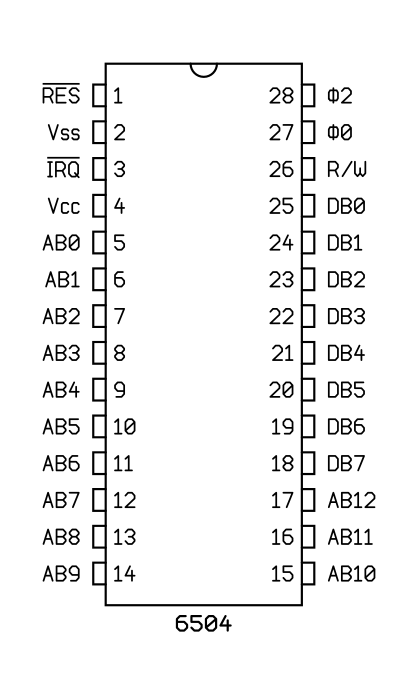

Pinout
Manufacturer:
MOS Technology
Part number:
MCS6504
Manufacturer:
MOS Technology
Part number:
MCS6504A
PDIP-28W (JEDEC MS-011, Variation AB)
package diagram
